Drive Medical Deluxe Dual Channel TENS Unit – Horizontal Design with Carry Case

The Drive Medical Deluxe Dual Channel TENS Unit (AGF-3X) features a horizontal ergonomic design that sits comfortably and securely on the belt, making it ideal for extended wear during daily activities. Designed for drug-free pain relief, this advanced TENS pain management device is suitable for treating chronic pain, acute pain, and muscle discomfort at home or in clinical rehabilitation and physical therapy settings.

Equipped with dual isolated channels, improved lead wire connectors, and multiple stimulation modes, the AGF-3X delivers customizable electrical nerve stimulation to help reduce pain and improve comfort throughout the day.

Key Features & Benefits

• Horizontal design provides an improved ergonomic fit when worn on a belt
• Deluxe lead wire connectors designed to stay securely engaged with the TENS unit
• Flip-down control panel and battery cover reduces cover loss and accidental damage
• Dual isolated channels allow treatment of two areas simultaneously
• Adjustable intensity from 0–80 mA (500 ohm load) for personalized therapy
• Pulse frequency adjustable from 2–150 Hz
• Pulse width adjustable from 60–250 microseconds
• Asymmetrical, bi-phase, square pulse waveform for effective pain relief
• Modulation selector with Normal, Burst, and Modulation modes
• Integrated plastic belt clip for convenient, hands-free use

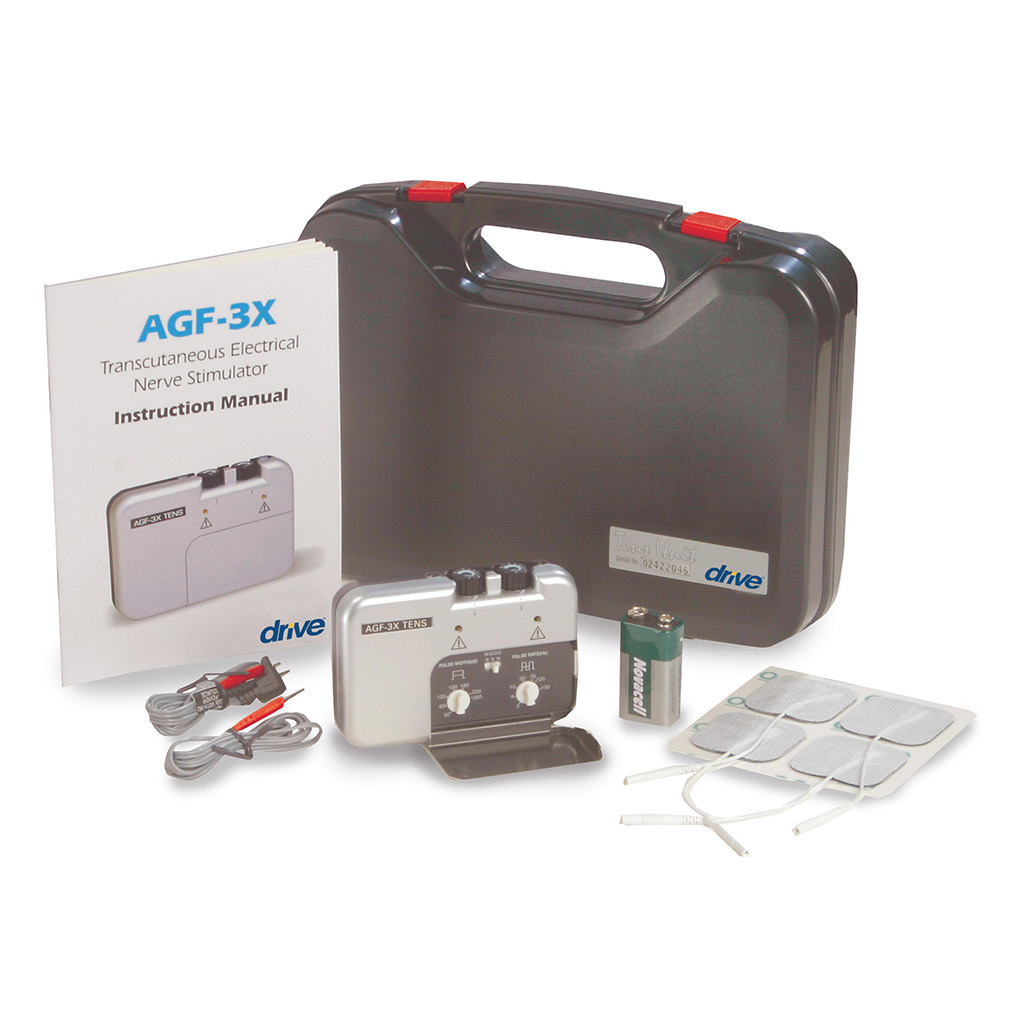

Complete TENS Therapy Kit Includes

• Drive Medical Deluxe Dual Channel TENS Unit (AGF-3X)
• Protective carrying case
• (2) Lead wires with deluxe connectors
• (1) 9-volt battery
• (1) Package of four pre-gelled electrodes
• Operating manual

Technical Specifications

• Model Number: AGF-3X
• Design: Horizontal, belt-mounted
• Channels: Dual, isolated
• Intensity Range: 0–80 mA (500 ohm load)
• Pulse Frequency: 2–150 Hz
• Pulse Width: 60–250 microseconds
• Waveform: Asymmetrical, bi-phase, square pulse
• Modes: Normal, Burst, Modulation

Ideal For

• Chronic and acute pain management
• Back, neck, shoulder, and joint pain
• Physical therapy and rehabilitation
• Extended daily wear and active users
• Home or clinical TENS therapy

Manufacturer: Drive Medical
Model: AGF-3X
